10-Port Fast Ethernet PoE Switch – HR903-AF-82Y-80

₨ 5,600.00

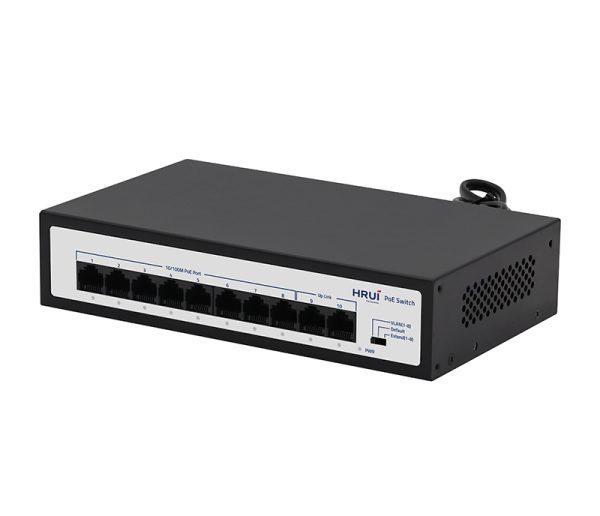

HR903-AF-82Y-120 is a 10-port Fast Ethernet PoE switch designed for reliable network performance. It features 8 Fast Ethernet PoE ports and 2 Fast Ethernet uplink RJ45 ports, compliant with IEEE 802.3, 802.3u, and 802.3x standards. Supporting IEEE 802.3af/at PoE with a total power budget of 120W, it enables flexible power delivery for connected devices. The switch offers three operation modes: VLAN, Default, and Extend mode, which extends transmission distance up to 250 meters at 10Mbps. With built-in 4KV surge protection and 8KV ESD protection, it ensures enhanced durability. Operating in temperatures of 0°C to 40°C, this fanless desktop switch is ideal for small to medium-sized network deployments.

Product Features:

Port Configuration: 8×100Mbps PoE ports + 2×100Mbps uplink RJ45 ports.

Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x.

Auto-Negotiation: Ethernet ports support 10/100Mbps self-adaptive operation.

Flow Control: Full duplex (IEEE 802.3x) and half duplex (Back Pressure).

Auto MDI/MDIX Support: Automatic port flipping for simplified cabling.

Switching Mechanism: Store-and-forward architecture.

Status Indicators: LED panel monitors operation and aids troubleshooting .

Operating Modes: Supports VLAN, Default, and Extend modes (extends distance to 250m at 10Mbps).

SKU: HR903-AF-82Y-120 Category: Networking Devices Brand: HRUI

Specifications

Model & Interface
Model	HR903-AF-82Y-120
Interface	8 × 100Mbps PoE Ports 2 × 100Mbps Uplink RJ45 Ports
Installation	Desktop
Network
Port Standard	IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3x (Flow Control)
Bandwidth	2Gbps
Packet Forwarding Rate	1.488Mpps
Packet Buffer	768kbit
MAC Address Table	2K
Transmission Method	Store and Forward
PoE
PoE Standard	IEEE 802.3af (15.4W) IEEE 802.3at (30W)
PoE Port Output Voltage	DC 44–57V
PoE Ports	Ports 1–8 PoE Power Output <30W
PoE Power Budget	115W
Power
Power Supply	AC 100–110V: 76.8W AC 110–200V: 96W AC 200–240V: 120W DC 52V 2.3A
Mainboard Power Consumption	1.98W
Structure Information

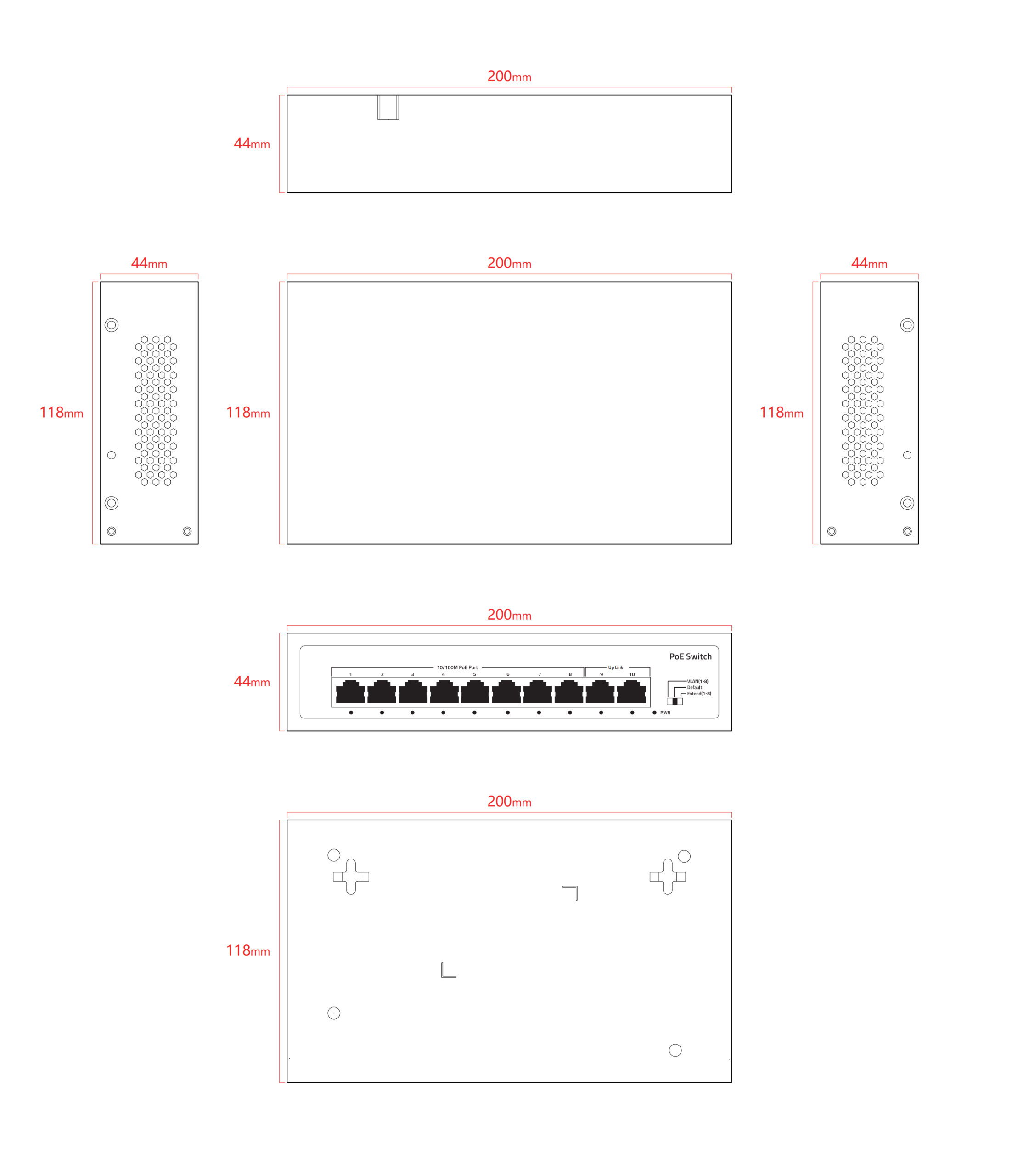

Product Dimensions	200 × 118 × 44mm
Packaging Dimensions	245 × 190 × 60mm
Product Net Weight	0.61kg
Product Gross Weight	0.69kg
Packing Information
Carton Dimensions	520 × 320 × 400mm
Packing Quantity	20 PCS
Packing Weight	14.8kg
Package Contents	Switch — 1 pcs Manual — 1 pcs Certificate of Inspection — 1 pcs
Protection
Surge Protection	Port Surge: Common Mode 4KV, Differential Mode 2KV (Class C) Electrostatic ESD: Air 8KV, Contact 6KV (Class C)
Environmental
Fan Quantity	0
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90%, Non-Condensing
Storage Humidity	5% ~ 95%, Non-Condensing
LED Indicators
PWR Green LED	On: Powered On Off: Powered Off
Ports 1–10 Green LED	On: Link Normal Off: Link Blocked Flashing: Data Transmitting
Operating Modes
VLAN Mode	Ports 1–8 are isolated from each other while communicating with Ports 9–10. Automatically activates PoE Watchdog mode.
Default Mode	Normal mode. All ports can communicate with each other. Transmission distance is within 100 meters. Transmission rate is 10/100Mbps adaptive. PoE Watchdog is Off.
Extend Mode	When PoE is in Extend mode, Ports 1–8 force 10Mbps operation. Transmission distance extends up to 250 meters and PoE Watchdog mode is automatically activated.
Mode Selection	VLAN / Default / Extend Mode Button
